Description:

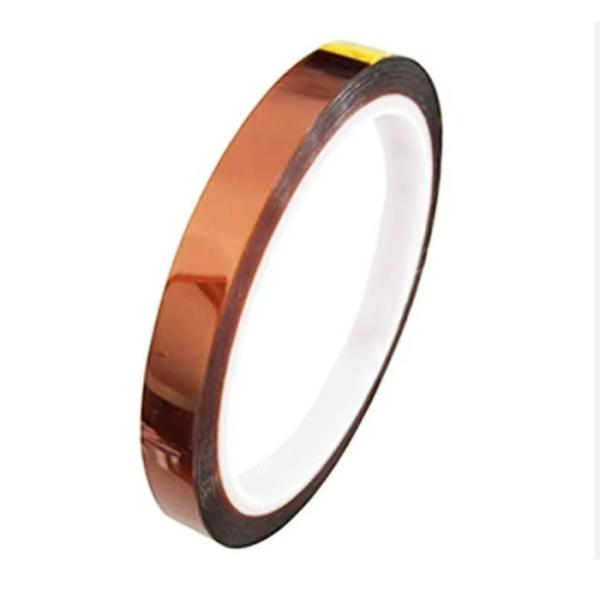

The Amber Polyimide Film Silicon Adhesive Tape is a durable and reliable solution for demanding industrial applications, offering exceptional high-temperature resistance with a long-term working temperature of 180°C. It features a high tensile strength (≥25N/10mm) and strong adhesion (≥1.8N/10mm), ensuring a secure and long-lasting bond for uses such as electrical insulation on PCBs. The tape provides an excellent balance of electrical, chemical, and physical properties, and is available in customizable thicknesses from 30um to 100um, making it a versatile choice for high-temperature environments.
Advantages:
- Excellent High-Temperature Resistance: Offers outstanding performance in high-temperature environments, maintaining stability and integrity without degrading under prolonged heat exposure.
- Superb Electrical Insulation: Provides high dielectric strength, ideal for insulating and protecting electronic components and printed circuit boards (PCBs).
- Strong Chemical Resistance: Demonstrates excellent resistance to most solvents, oils, and chemicals, ensuring durability in harsh conditions.
- High Mechanical Strength: Features high tensile and tear resistance, preventing breakage and ensuring durable physical protection.
- Inherent Flame Retardancy: The polyimide base material is flame-retardant, enhancing safety in various applications.
- Reliable Adhesion: Utilizes a effective pressure-sensitive adhesive that ensures strong, consistent bonding to various substrates.
Technical Parameters:
| RoHS Compliant | Yes |
| Product Category | Polyimide Film Adhesive Tape |
| Adhesive | Pressure Sensitive Silicone Adhesive |
| Versatile Applications |
- Electronics: Provides essential insulation for PCBs, protects components, and is ideal for coil wrapping.
- Semiconductors: Serves as a precise mask in critical manufacturing processes such as etching and plating.
- Industrial: Ensures reliable performance in high-temperature masking, motor and wire insulation, and aerospace assemblies.
|
| Application | High Temperature Applications |
| Temperature Range | -73℃ to 260℃ |
| Adhesion | ≥1.8N/10mm |
Applications:
- Electronics and Circuit Manufacturing: Primarily used for PCB solder masking, flexible printed circuit (FPC) fixation, and insulation protection for motor and transformer coils.
- Semiconductor Processing: Serves as a high-precision temporary masking tape in key processes such as etching, plating, and ion implantation.
- Industrial and Aerospace Applications: Suitable for demanding environments including high-temperature paint masking, heat-resistant motor insulation, and wire harness protection in aerospace equipment.
Further Details:
- Origin: Manufactured in China
- Certifications: Compliant with International Quality Standards, RoHS, and Halogen-Free
- Packaging: 33-meter standard rolls, packed in export carton cases
Pricing & Supply
- Price: based on sizes and quantity(cost-effective)
- MOQ: 500 m²
- Supply Ability: 50,000 m² per month
- Payment Terms: L/C, T/T
- Delivery Time: 35 working days
Packing and Shipping:
- Product Packaging: Each roll of Polyimide Film Adhesive Tape is individually sealed in protective plastic wrapping to preserve its core integrity and adhesive quality during storage and handling.
- Shipping: For transit, rolls are securely packed in sturdy, reinforced cardboard boxes. We partner with reliable carriers to ensure safe and timely delivery to your destination.
